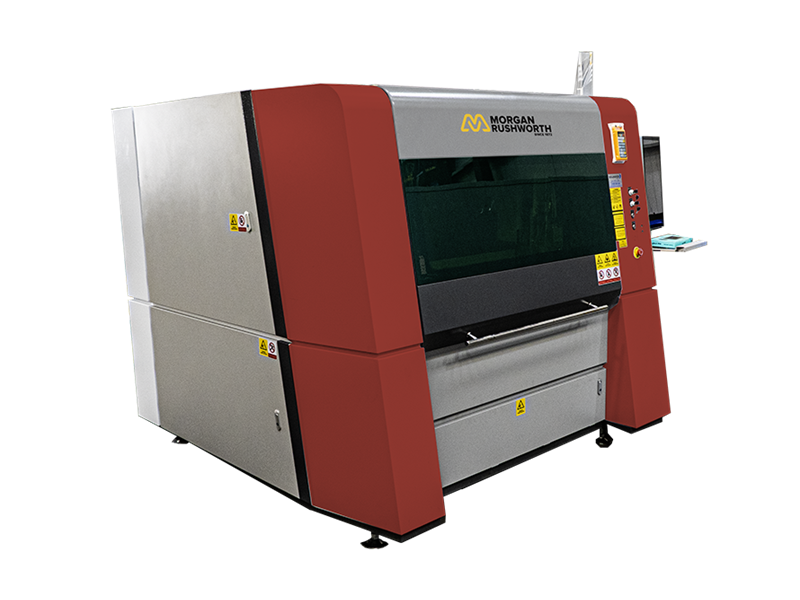

Read MoreMorgan Rushworth XC 1309.3000 CNC Fibre Laser Cutting Machine
The Morgan Rushworth XC range offers compact, enclosed fibre laser cutting systems with a pull-out cutting table. Designed to maximise efficiency in smaller workshops, this layout provides front-loading convenience while maintaining CE-compliant enclosure standards.
Supplied in three bed sizes, the XC series is available with 1.5kw, 3kW or 6kW laser sources. It delivers high performance in a small footprint, making it a popular choice for fabrication businesses seeking in-house cutting capabilities without the space requirements of larger shuttle table models.
Carefully selected components from globally recognised suppliers ensure long-term reliability, with integrated CCTV for operator monitoring and full CE compliance as standard.
Features
- Compact design with pull out cutting table
- High performance mLASE fibre laser source
- mNEST laser cutting software with integrated CAD/CAM and nesting
- mCUT autofocus cutting head
- Rigid gantry system ensuring fast accurate positioning to X and Y axis
- Automatic height sensor to ensure optimum cutting efficiency
Options
- mNEST CAM and nesting software for PC with DXF/DWG import
- Extraction/filtration system
Technical Information
| MODEL | XC 1309.3000 | |
| Laser Power | kW | 3.0 |
| Fibre Laser Source | mLASE | |
| Maximum Cutting Capacity | ||
| Mild Steel | mm | 22 |
| Stainless Steel | mm | 12 |
| Aluminium | mm | 6 |
| Brass | mm | 6 |
| Copper | mm | 5 |
| Production Cutting Capacity | ||
| Mild Steel | mm | 15 |
| Stainless Steel | mm | 8 |
| Aluminium | mm | 4 |
| Brass | mm | 5 |
| Copper | mm | 4 |
| X Axis Travel | mm | 1300 |
| Y Axis Travel | mm | 900 |
| Z Axis Travel | mm | 80 |
| Maximum Sheet Size | mm | 1300 x 900 |
| Positioning Speed | m/min | 40 |
| Axis Acceleration | G | 0.5 |
| Positioning Accuracy | mm | ±0.03 |
| Repeat Position Accuracy | mm | ±0.02 |
| Length | mm | 2115 |
| Width | mm | 2600 |
| Height | mm | 1880 |
| Weight | kg | 1950 |
