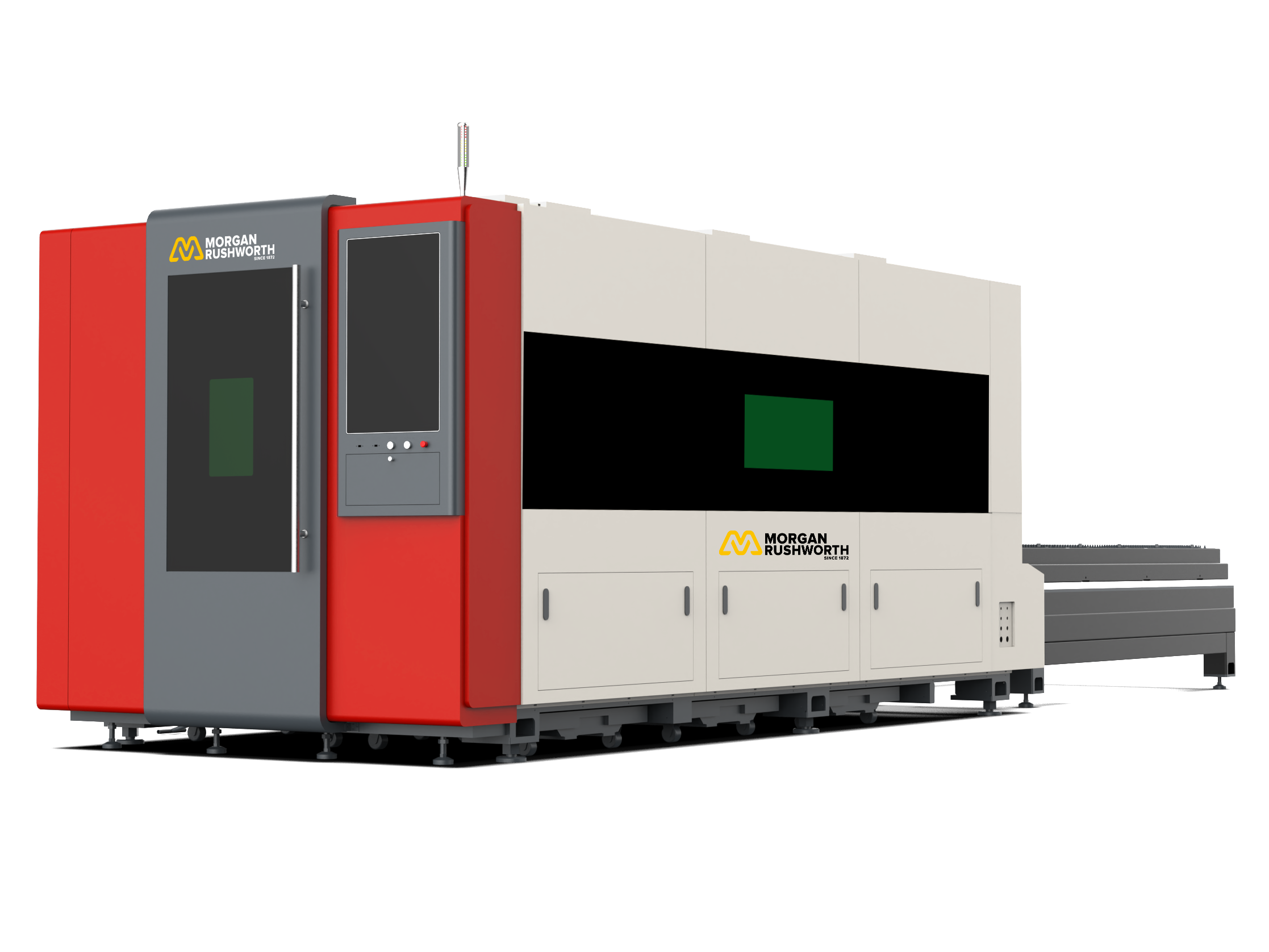

Read MoreMorgan Rushworth XL 6020.40000 Fibre Laser Cutting Machine
The Morgan Rushworth XL range of fibre lasers are equipped with a 3m x 1.5m up to a 6.5m x 2.5m cutting area with automatic shuttle table with dual pallet changer, enabling parts to be safely loaded and unloaded whilst the machine is still cutting. Class leading components ensure superior cut quality, high reliability and reduced down time.
The range covers from 1.5kW up to 40kW with the Yaskawa motors and drives for the X & Y axis and a rigid gantry and frame structure, resulting in fast acceleration, fast positioning speeds and fast cutting times. The FSCUT control includes software for drawing parts or importing DXF files.
Features
- Class leading MAX Photonics fibre laser source
- BOCHU cutting head with auto focus and anti-collision functionality
- Automatic nozzle cleaning
- Yaskawa servo motors and drives
- Advanced aluminium gantry
- Automatic gas selection system
- FSCUT touchscreen controller
- CCTV system
- Automatic sheet edge detection with skew allowance
- Fast shuttle table change time
- Automatic lubrication system
- Door windows with laser protective material
- Light guard protection for shuttle table
Options
- Fume extractor with filters
Technical Information
| MODEL | XL 6020.40000 | |
| Fibre Laser Source | 40.0 kW | |
| Maximum Cutting Capacity | ||
| Mild Steel | mm | 100 |
| Stainless Steel | mm | 100 |
| Aluminium | mm | 100 |
| Brass | mm | 30 |
| Copper | mm | 20 |
| Production Cutting Capacity | ||
| Mild Steel | mm | 70 |
| Stainless Steel | mm | 70 |
| Aluminium | mm | 70 |
| Brass | mm | 25 |
| Copper | mm | 15 |
| X Axis Travel | mm | 6000 |
| Y Axis Travel | mm | 2000 |
| Z Axis Travel | mm | 375 |
| Maximum Sheet Size | mm | 6050mm x 2030mm |
| Maximum Sheet Weight | kg | 4750 |
| Simultaneous Positioning Speed | m/min | 115 |
| Axis Acceleration | G | 1.5 |
| Positioning Accuracy | mm | 0.03 |
| Length | mm | 14580 |
| Width | mm | 3430 |
| Height | mm | 2350 |
| Weight | Kg | 14385 |
