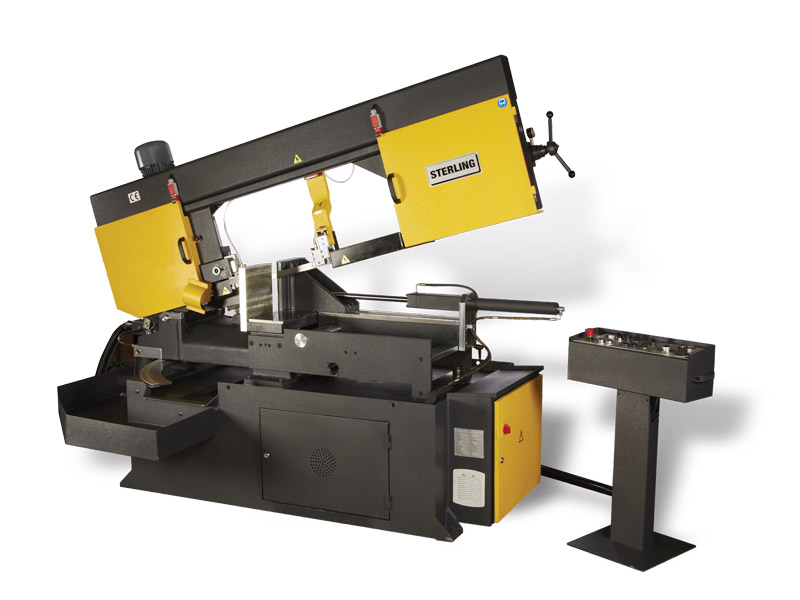

Read MoreSterling SRA440 DGSA Double Mitre Semi-Automatic Band Saw
The Sterling SRA360 DGSA and SRA440 DGSA band saws are large capacity double mitring head models, featuring five hydraulic systems for ultimate productivity. Vice clamping, bow downfeed, bow return, bow counter balancing, and mitre setting at any angle are all performed using hydraulics for superior performance and ease of use.
Features
- Hydraulic downfeed with variable cutting pressure
- Hydraulic bow counterbalance system
- Hydraulic bow return with height adjustment
- Double mitring swivel head 60° left and right
- Digital mitre display
- Hydraulic bow lock at any angle
- Hydraulic vice
- Vice sides from left to right
- Carbide blade guides for high accuracy
- Infinitely variable cutting speed
- Coolant system
Options
- Hydraulic top vice clamp
- Hydraulic sliding of vice from left to right
- Spray mist cooling system (requires compressor)
- Roller track and measuring systems
Technical Information
| MODEL | SRA440 DGSA | |
| Capacities | ||
| Tube at 90° | mm | 440 |
| Square Section at 90° | mm | 440 |
| Rectangular Section / Beam at 90° | mm | 610 x 440 |
| Tube at 45° L & R | mm | 410 |
| Square Section at 45° L & R | mm | 410 |
| Rectangular Section / Beam at 45° L & R | mm | 410 x 440 |
| Tube at 60° Left | mm | 320 |
| Square Section at 60° Left | mm | 285 |
| Rectangular Section / Beam at 60° Left | mm | 285 x 440 |
| Tube at 60° Right | mm | 320 |
| Square Section at 60° Right | mm | 250 |
| Rectangular Section / Beam at 60° Right | mm | 250 x 440 |
| Blade Size | mm | 5200 x 34 x 1.1 |
| Bed Height | mm | 860 |
| Cutting Speed | m/min | 20 - 100 |
| Motor | kW | 3 |
| Length | mm | 2800 |
| Width | mm | 1850 |
| Height | mm | 1870 |
| Weight | kg | 1540 |
| Operation | Semi-automatic | |
| Vice | Hydraulic |
