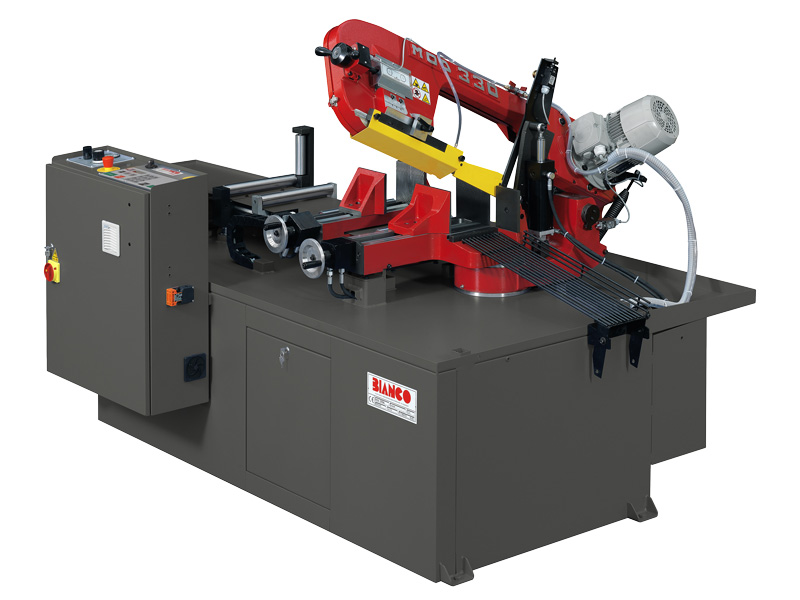

Bianco 330 AE PLC Vice Feed Automatic Bandsaw 415V

The Bianco 330 AE PLC automatic bandsaw features a hydraulic shuttle vice feed as well as hydraulic down feed pressure and speed adjustment. The required cut length is set using a hand wheel with a highly accurate scale. Quantities to be cut are entered from the control panel, along with other cutting parameters. The 330 AE PLC models also feature a down feed cylinder at the rear of the machine allowing unencumbered access when loading material. A mitring head design allows mitre cutting up to 60 degrees right in semi-automatic mode. This model is also available as a CNC version - the Bianco 330 AE CNC - with all cut parameters configured via the control.

Download PDF Spec Sheet

Download
PDF Spec Sheet

Read More Bianco 330 AE PLC Vice Feed Automatic Bandsaw 415V

Get In Touch

Get In
Touch

Features

Fully automatic cutting cycle with hydraulic vice feed system
PLC control for cut quantities and machine functions
Handwheel for setting cut length with fine adjustment and mechanical readout
Downfeed cylinder at the rear of the machine for easy access
Quick mitring swivel head up to 60° in semi-automatic mode
Fast and slow blade speeds for mild and stainless steel cutting
Hydraulic cutting with variable pressure and variable speed
Hydraulic fixed and feeding vices
Shuttle vice facility for long cutting lengths
Fast approach with auto bow height return setting
Cast bow construction
Carbide blade guides for high accuracy
Swarf brush

Options

Variable blade speed for cutting a wide range of materials
Spray mist cooling system (requires compressor)
Hydraulic bundle cutting
Variable clamping pressure
Cutting angle display
Blade deflection control
Roller track and measuring systems

Technical Information

MODEL		330 AE PLC
Capacities
Tube at 90°	mm	260
Square Section at 90°	mm	220
Rectangular Section / Beam at 90°	mm	330 x 140
Tube at 45°	mm	200
Square Section at 45°	mm	190
Rectangular Section / Beam at 45°	mm	200 x 130
Tube at 60°	mm	120
Square Section at 60°	mm	115
Rectangular Section / Beam at 60°	mm	120 x 100
Blade Size	mm	3010 x 27 x 0.9
Bed Height	mm	835
Cutting Speed	m/min	35 / 70
Motor	kW	0.9 - 1.4
Length	mm	2330
Width	mm	1520
Height	mm	1800
Weight	kg	655
Operation		Automatic
Vice		Hydraulic
