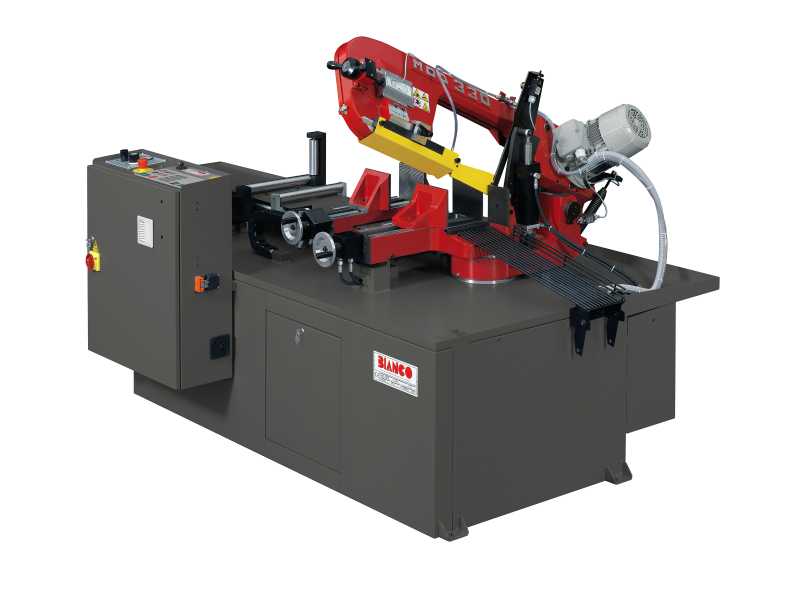

Bianco 330 AE CNC Vice Feed Automatic Bandsaw 415V

The Bianco 330 AE CNC automatic bandsaw features a hydraulic shuttle vice feed as well as hydraulic down feed pressure and speed adjustment. Cutting parameters including cut length, number of shuttles and the required quantity are entered using the CNC control. A cutting list of lengths and quantities to be processed can be programmed within one piece of stock material. The 330 AE CNC models also feature a down feed cylinder at the rear of the machine allowing unencumbered access when loading material. A mitring head design allows mitre cutting up to 60 degrees right in semi-automatic mode. This model is also available as a PLC version - the Bianco 330 AE PLC - with simple cut length adjustment via a handwheel.

Download PDF Spec Sheet

Download
PDF Spec Sheet

Read More Bianco 330 AE CNC Vice Feed Automatic Bandsaw 415V

Get In Touch

Get In
Touch

Features

Fully automatic cutting cycle with hydraulic vice feed system
CNC control for varying cut lengths and quantities
Downfeed cylinder at the rear of the machine for easy access
Quick mitring swivel head up to 60° in semi-automatic mode
Variable blade speed for cutting a wide range of materials
Hydraulic cutting with variable pressure and variable speed
Hydraulic fixed and feeding vices
Shuttle vice facility for long cutting lengths
Fast approach with auto bow height return setting
Cast bow construction
Carbide blade guides for high accuracy
Swarf brush

Options

Spray mist cooling system (requires compressor)
Hydraulic bundle cutting
Variable clamping pressure
Cutting angle display
Blade deflection control
Roller track and measuring systems

Technical Information

MODEL		330 AE CNC
Capacities
Tube at 90°	mm	260
Square Section at 90°	mm	240
Rectangular Section / Beam at 90°	mm	330 x 120
Tube at 45°	mm	200
Square Section at 45°	mm	190
Rectangular Section / Beam at 45°	mm	200 x 130
Tube at 60°	mm	120
Square Section at 60°	mm	115
Rectangular Section / Beam at 60°	mm	120 x 100
Blade Size	mm	3010 x 27 x 0.9
Bed Height	mm	835
Cutting Speed	m/min	20 - 100
Motor	kW	1.5
Length	mm	2800
Width	mm	2050
Height	mm	1900
Weight	kg	1090
Operation		CNC Automatic
Vice		Hydraulic
