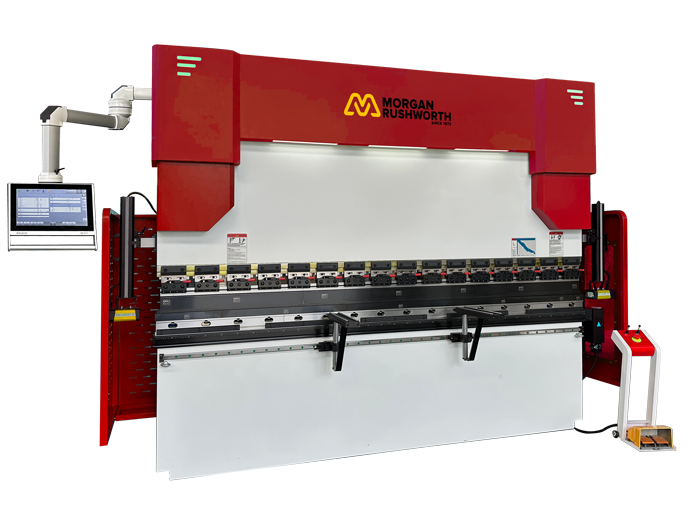

Morgan Rushworth PBXL CNC Hydraulic Press Brakes

The Morgan Rushworth PBXL CNC press brakes are fitted with the ESA S 840 CNC control featuring a 15.6” touch screen and both numerical and 2D graphical program entry. Bending can also be graphically visualised in 2D showing the machine frame, top and bottom tools, back gauge fingers and part orientation. PC based software is included and, with the control networked, can be used to load programs from the office.

The PBXL CNC models feature 3-axis CNC control of the left and right ram cylinders and the back gauge depth. The position of the two cylinders is fully synchronised with high precision scales on the side frames ensuring ram parallelism. AKAS laser tooling guards are standard and offer a vastly improved operator experience without compromising safety. All PBXL CNC models are supplied with sectionalised euro style top tools and a multi vee bottom die and can be specified with a number of options including crowning systems and CNC controlled R axis.

Why choose a PBXL Press Brake ?

ESA S840 multi-axis CNC 15.6" control with numerical and 2D graphical programming and visualisation, mounted on a pendant arm
Fully synchronised CNC control of left and right upper beam cylinder position – Y1 + Y2 axis
CNC control of back gauge depth – X axis
Manual adjustment of back gauge height – R axis
Manual side to side movement of back gauge fingers – Z axis
Back gauge fingers with fine depth adjustment, adjustable laterally on a linear rail
Euro style Quick Release top tool holders with wedge style intermediates
Sectionalised goose neck top tool and multi vee bottom die
AKAS laser tooling guards for enhanced ease of use
High precision linear scales for measurement of the stroke depth
Hydraulic ram travel guided in low friction slide ways
High approach and return speeds for production bending
Electrically interlocked side guards

Models

Use the drop down menu to select the machine of your choice.
