Brenner Milling Machines

Read More Get In Touch

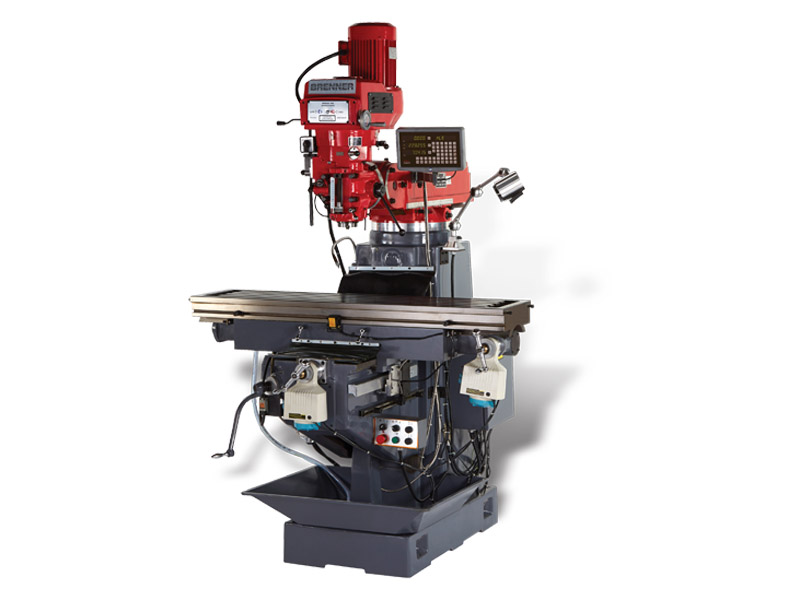

Brenner Milling Machines

The Brenner Range of Milling Machines are high precision, very accurate and extremely versatile. The turret head can be inclined upwards and downwards, rotated in both vertical and horizontal planes, clockwise and anticlockwise. Each angle can be finely set due to the degree scales for all three variations. X, Y and Z axis are easily and accurately controlled by both the hand wheels, with micrometer scales which can be zeroed, and the DRO system.
The 220R and 220RX models accepts R8 tooling whilst the 375S and 560S models driven by powerful motors accepts ISO40 tooling. Infinitely variable power feed with fast overide button is fitted as standard to the X axis on the 220R and 220RX models and to X, Y and Z axis on the 375S and 560S machines.

Why Choose a Brenner Turret Mill?

  • High accuracy.
  • Hardened slideways.
  • Centralised lubrication.
  • Digital Read Out for X, Y and Z axis.
  • Large table with T slots.
  • Tapping facility.
  • Motor brake lever.
  • Coolant system.
  • ISO40 tooling with power X, Y and Z axis.
  • Halogen lamp.
  • Safety guard with interlock.
  • Swarf Tray.
