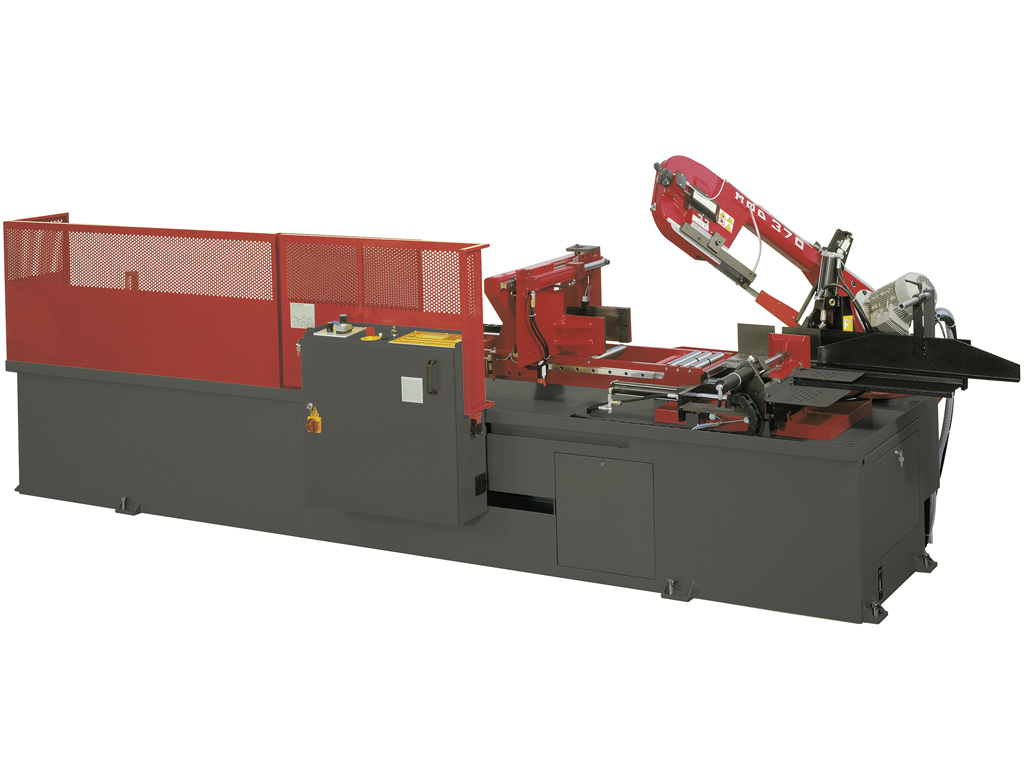

The Bianco double mitre automatic range offer automatic bow swing in addition to the automatic material feeding system. Both of these functions are controlled through the CNC control panel or by offline programming. The first cut is selected at any angle between 45 degrees left and 60 degrees right. The required length is then then selected by choosing the internal or external measurement and then the last cutting angle is selected between 45 degrees left and 60 degrees right. Finally the total number of components are entered. Optional magazine systems are also available to further increase productivity. All Bianco machines are manufactured in Italy to high quality standards with accuracy and longevity as prime considerations.
| MODEL | 370A DS CNC TOUCH 3R | |
| Capacities | ||
| Tube at 90° | mm | 280 |
| Square Section at 90° | mm | 240 |
| Rectangular Section / Beam at 90° | mm | 310 x 240 |
| Tube at 45° L | mm | 200 |
| Tube at 45° R | mm | 230 |
| Square Section 45° L | mm | 170 |
| Square Section 45° R | mm | 230 |
| Rectangular Section / Beam at 45° L | mm | 220 x 100 |
| Rectangular Section / Beam at 45° R | mm | 230 x 230 |
| Tube at 60° R | mm | 140 |
| Square Section 60° R | mm | 140 |
| Rectangular Section / Beam at 60° R | mm | 140 x 140 |
| Blade Size | mm | 3120 x 27 x 0.9 |
| Bed Height | mm | 835 |
| Cutting Speed | m/min | 20 - 100 |
| Motor | kW | 1.5 |
| Length | mm | 4800 |
| Width | mm | 2000 |
| Height | mm | 1820 |
| Weight | kg | 1850 |
| Operation | CNC Automatic | |
| Vice | Hydraulic |
