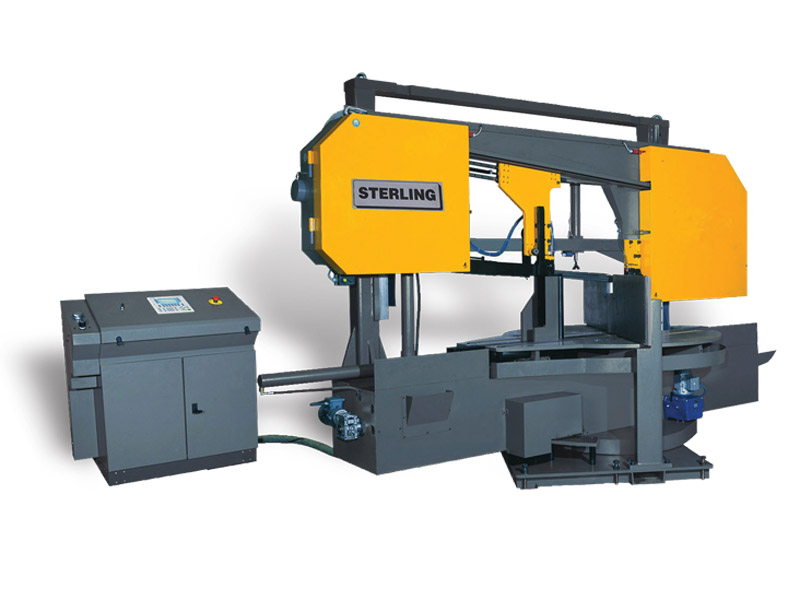

Sterling STC750 DGSA NC Twin Column Double Mitre Semi-Automatic Band Saw

The Sterling STC750 DGSA NC is an extremely high specification model with advanced features including NC controlled powered bow rotation for mitre angle setting. With the capacity to cut up to 1300mm beams at 90 degrees, this machine is ideally suited to large structural applications.

Sterling STC750 DGSA NC Twin Column Double Mitre Semi-Automatic Band Saw
Download PDF Spec Sheet Sterling STC750 DGSA NC Twin Column Double Mitre Semi-Automatic Band Saw Download PDF Spec Sheet

Download
PDF Spec Sheet

Read More Sterling STC750 DGSA NC Twin Column Double Mitre Semi-Automatic Band Saw Read More

Read
More

Get In Touch Get In Touch

Get In
Touch

Features

  • Twin column design with linear guides
  • Hydraulic downfeed with variable cutting pressure
  • 5 degree inclined blade
  • Hydraulic bow return with height adjustment
  • Double mitring swivel head 45° left and 60° right
  • Powered bow rotation with NC controlled angle setting
  • Digital mitre display
  • Hydraulic bow lock at any angle
  • Hydraulic vice able to clamp at any angle
  • Carbide blade guides for high accuracy
  • Hydraulic blade tension
  • Infinitely variable cutting speed
  • Motorised swarf brush
  • Chip conveyor
  • Coolant system
  • Safety interlock switches fitted to band cover

Options

  • Hydraulic top vice clamp
  • Spray mist cooling system (requires compressor)
  • Laser cutting line
  • Roller track and measuring systems

Technical Information

MODEL   STC750 DGSA NC
Capacities
Tube at 90° mm 700
Square Section at 90° mm 750
Rectangular Section / Beam at 90° mm 1300 x 750
Tube at 45° Left mm 800
Square Section at 45° Left mm 750
Rectangular Section / Beam at 45° Left mm 850 x 750
Tube at 45° Right mm 700
Square Section at 45° Right mm 750
Rectangular Section / Beam at 45° Right   850 x 750
Tube at 60° Right mm 570
Square Section at 60° Right mm 570
Rectangular Section / Beam at 60° Right mm 570 x 750
Blade Size mm 9600 x 54 x 1.6
Bed Height mm 880
Cutting Speed m/min 20 - 100
Motor kW 7.5
Length mm 5050
Width mm 2200
Height mm 2900
Weight kg 6700
Operation   Semi-automatic
Vice   Hydraulic
