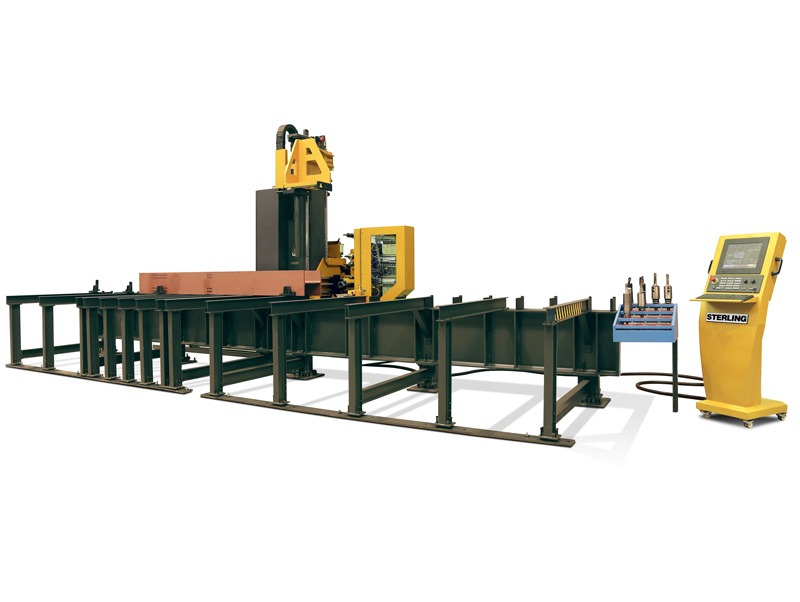

Sterling SBD1200-08 A CNC Beam Drilling Line 415V

The Sterling SBD1200 models are single spindle CNC drilling machines for the processing of beams and other structural sections including channels and angles. This space saving design allows the beam to remain still while the drilling head travels, making it ideal for the smaller workshop and general fabricator.

Download PDF Spec Sheet

Download
PDF Spec Sheet

Read More Sterling SBD1200-08 A CNC Beam Drilling Line 415V

Get In Touch

Get In
Touch

Features

CNC drilling system for beams and other structural profiles
Processes I-beam, channel, box section, angle, flat bar and more
Capable of drilling, milling, tapping, countersinking and marking
Affordable space-saving design with fixed table and moving drilling head
Available in different length capacities from 2 metres to 26 metres
Siemens SIMOTION CNC control with 15” touch screen
Intuitive control software with DSTV importer for both holes and marking text
Remote control for easy operation close to the machine
High power single spindle drilling head with six station tool changer
Drill feed and height position by ball screw with servo motors
Drill head movement in long axis by rack and pinion drive
Sub axis spindle for drilling head in long axis without unclamping the drilling head
Hydraulic top clamp and mechanical side clamps for material
Anti-slip locking mechanism for drilling head on long axis
Minimum quantity lubrication system (MQL)
BT 40 spindle taper
Automatic measurement of tool length with optic sensor
Optical sensor for zero point of program
Automatic fast approach speed of drill feeding axis with fast return
Automatic machine lubrication system

Options

Additional roller track

Technical Information

MODEL		SBD1200
Drilling Capacity - Standard Drills	mm	32
Drilling Capacity - Carbide Drills	mm	40
Tapping Capacity		M10 - M24
Drilling Spindle Power	kW	15
Drilling Speed Range	RPM	10 - 3000
Auto Tool Change Stations	mm	6
Working Length	mm	2000
Working Height Range	mm	50 - 1200
Working Width Range	mm	50 - 1200
Maximum Tool Length	mm	320
Total Power	kW	45
Table Height	mm	1000
Length	mm	11600
Width	mm	3000
Height	mm	3150
Weight	kg	TBA
