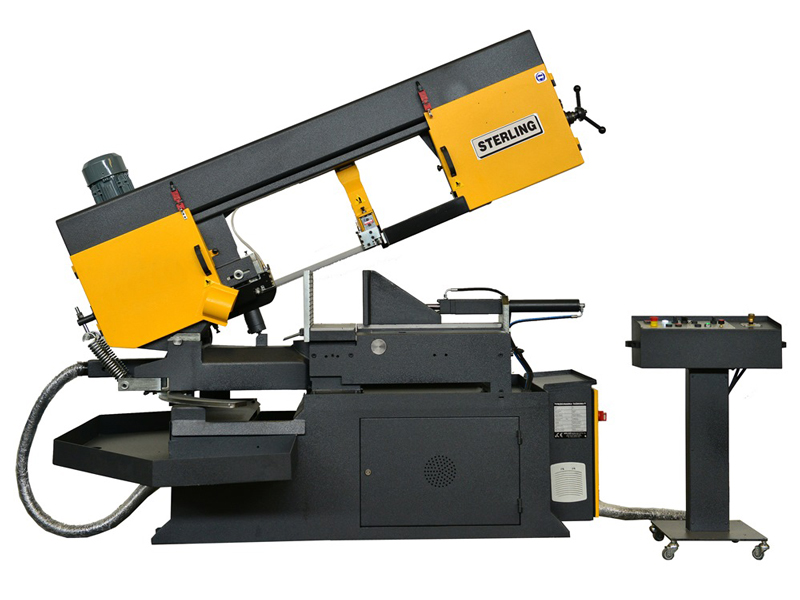

The Sterling SRA360 DGSAE band saws are large capacity double mitring head models, featuring four hydraulic systems for ultimate productivity. Vice clamping, bow downfeed, bow return and mitre setting at any angle are all performed using hydraulics for superior performance and ease of use.
| MODEL | SRA360 DGSAE | |
| Capacities | ||
| Tube at 90° | mm | 360 |
| Square Section at 90° | mm | 360 |
| Rectangular Section / Beam at 90° | mm | 510 x 360 |
| Tube at 45° L & R | mm | 360 |
| Square Section at 45° L & R | mm | 360 |
| Rectangular Section / Beam at 45° L & R | mm | 390 x 360 |
| Tube at 60° L & R | mm | 200 |
| Square Section at 60° L & R | mm | 200 |
| Rectangular Section / Beam at 60° L & R | mm | 200 x 360 |
| Blade Size | mm | 4800 x 34 x 1.1 |
| Bed Height | mm | 860 |
| Cutting Speed | m/min | 20 - 100 |
| Motor | kW | 3 |
| Length | mm | 2650 |
| Width | mm | 1210 |
| Height | mm | 1870 |
| Weight | Kg | 1300 |
| Operation | Semi-automatic | |
| Vice | Hydraulic |
